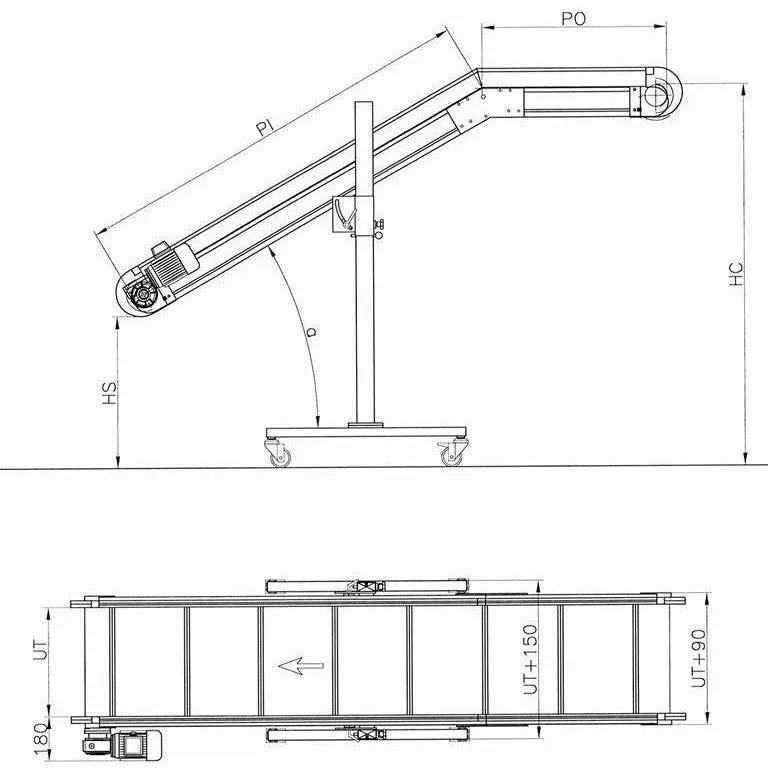

| Dimensions | from 6 pitch* (PO 500mm PI 650mm) to 22 pitch (UT ≤ 500mm) or 11 pitch (UT ≥ 600mm) UT: from 200mm / to 800mm (50 mm increments) *1pitch=378mm |
| Frame | anodised extruded aluminium profile die cast aluminium alloy head supports zinc plated steel join supports available fixed incline 30° - 45° - 60° |
| Sidewalls | anodised extruded aluminium profile |
| Stand support | zinc plated steel hinges and clamps zinc plated steel legs castors with brakes |
| Belt |
RAL 7035 grey embossed PP surface |
| Drive | direct (left side) 3 Phase – 400Vac/50Hz – 0.18kW – asynchronous motor |
| Speed | 4 m/min |
| Control | Start - Stop |
